3D Trajectory Manager
The 3D Trajectory Manager stores the trajectory steps that have been confirmed (OK'd). The combined Linear and Rotation steps make up the complete electrode trajectory.
Each trajectory step can either be edited or deleted.
-
Either double-click the value to be changed and enter the new value directly into the 3D Trajectory Manager, or right-click the appropriate step and select Edit Step or Delete Step.
In both cases, the step in the 3D Trajectory Manager and the actual trajectory movement in the display area are highlighted.
In the example below, step 2 is selected for editing.
Edit Step
The trajectory is rolled back to the selected step and subsequent steps are not shown.
|
|

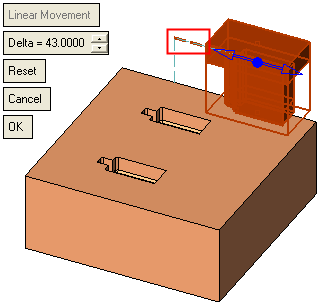

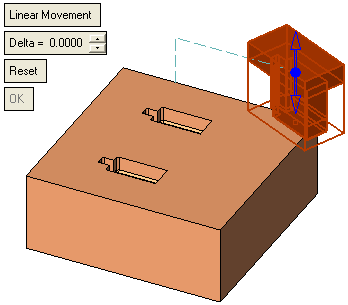

The parameters of the selected trajectory step are displayed. The Linear Movement / Rotate option is grayed out as it is irrelevant at this stage. Note the highlighted trajectory. |
-
Edit the Delta or Angle value and press OK.
The 3D Trajectory Manager and graphics area are updated with the new values.
|
The original step 2 value and trajectory display. |
After the Edit, the new step 2 value and the updated trajectory display. |
|
|
|
|
|
|
Delete Step
The entry in the 3D Trajectory Manager is deleted and the following step is renumbered.
-
Delete the selected step.
The 3D Trajectory Manager and graphics area are updated with the new values.
|
The original step 2 value and trajectory display. |
After the Delete, the new step 2 value and the updated trajectory display. |
|
|
|
|
|
|
|
