4 Axes Table

These machines have one rotary axis only, mounted on the table. In GPP2, these machines are defined as table-head (TH), with a "null" head axis (since the head does not really rotate. Hence, the table axis is the primary (alpha) axis, and the secondary (beta) axis is not used.

The part rotates with the table, so the procedure origin UCS rotates and moves with each rotation.

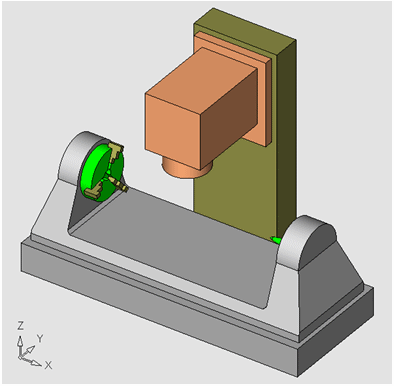

Alpha axis X, null Beta axis
