BOM: Table Editing Operations - Assembly
Access: Open this function from one of the following locations:
-
Click the
button in the toolbar. -
Select Assembly > Main Tools > BOM from the menu bar.
-
Select BOM from the Mold Design Guide Toolbar.
The following BOM table editing options are available:
Text editing
To edit text within a cell, double-click the cell. To perform other operations, right-click within the cell to display a popup menu and select the required option.
Cut |
Cut, Copy, Paste the contents of the cell. |
Copy |
|
Paste |
|
Hide Cell |
Hide the cell. |
Alignment |
Align the text in the cell left, right or center. |
Clear Content |
Clear the cell content. |
|
Hide Other |
Hide everything except for the selected/highlighted geometry. |
Table function
To modify the rows in the BOM, right-click the gray squaregray square to the left of a specific row. The row is shaded and a popup menu with row editing options is displayed.
↵
|
Insert Row |
Insert a row above the selected row. |
|
Delete Row |
Delete the selected row. |
|
Hide Row |
Hide the selected row. This is unavailable in the BOM Table Editor. |
|
Split Table |
Split the BoM table at the selected row. |
|
Clear Content |
Clear the contents of the row. |

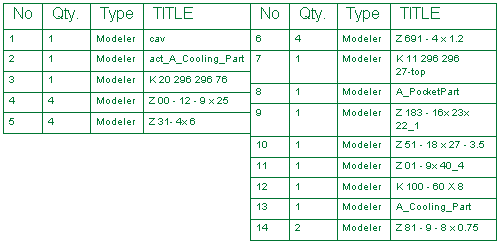

Splitting a BOM
A BOM can be split from the BOM Table Editor dialog.
In the BOM Table Editor, right-click the gray squaregray square to the left of the row where the BOM will be split.
Select the Split Table option from the popup menu.
Click OK
.
The BOM table is split when Export BOM to File
is selected.
|
