License Server Monitor

Access: Run the License Server Monitor from Start > All Programs > Cimatron License Server > License Server Monitor.

The License Server Monitor controls the License Server and enables the System Administrator to control the licensing for relevant products at a user site. The License Server Monitor is installed into the same location as the CimLmService.

Using the License Server Monitor, the Administrator can:

  1. Activate a license.

  2. Start/stop the service.

  3. View the recent activities of all the connected clients.

  4. Check for any access errors.

Any change to the settings in the Configuration tab requires you to stop the service before the change and then to restart it (using the Start and Stop buttons).

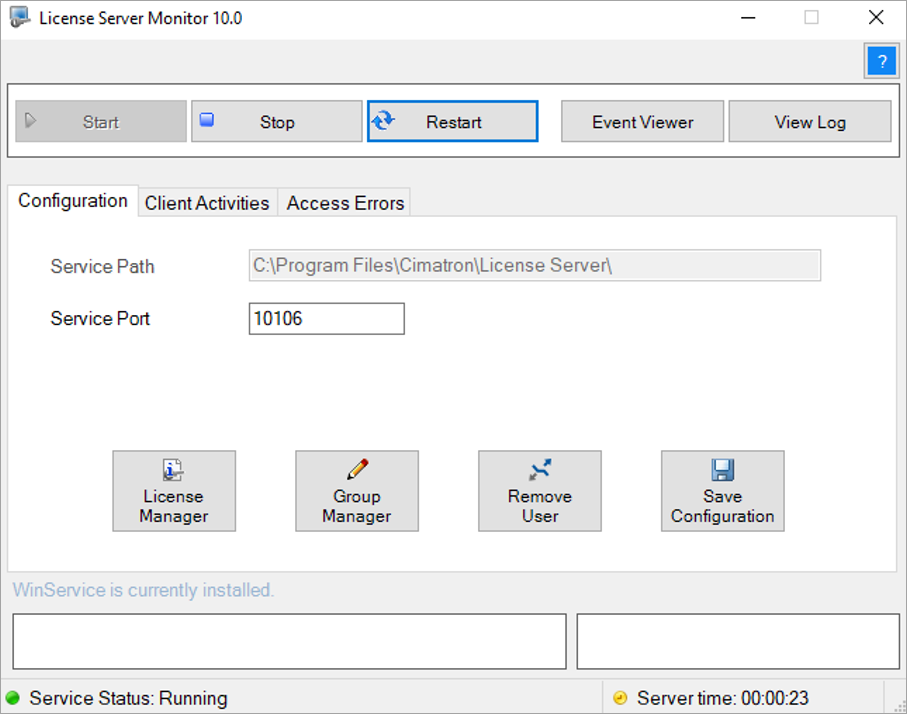

To configure and start the service, use the tabs of the License Server Monitor dialog shown below:



Important:

  • Before installing a new version of the License Server, the previous version should be uninstalled.

  • The Server and the Clients must be configured to the same port!



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
