Collect My Cimatron Data

Access: Open this function from the following location:

  • Cimatron Control Panel: Select Start > All Programs > Cimatron > Cimatron Control Panel.

    Select Utilities > Collect My Cimatron Data.

Create a ZIP file containing Cimatron installation data from your PC. Among other uses, this tool can also be used for support-related issues.

This function searches for the relevant installation files, creates the zip file and prompts that the zip file has been created.

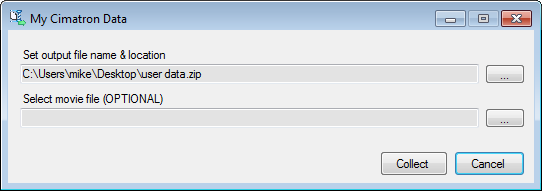

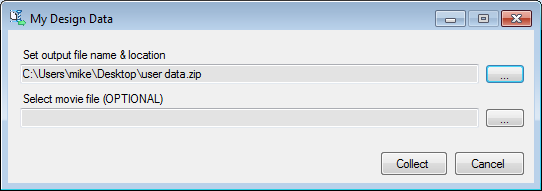

The following dialog is displayed:

Enter the output file name and location and, if required, select a movie file to be added to the ZIP file. Press Collect to start the process. A message is displayed informing you that the ZIP file has been created.

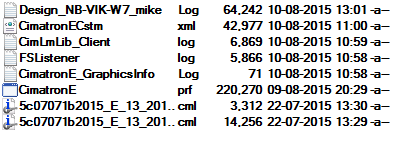

An example ZIP dialog showing the collected Cimatron installation files is displayed below:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
