Cooling Distance Map

Access: Open this function from the following location:

  • Select Mold Design > Cooling > Cooling Distance Map from the menu bar.

Analyze and create a color map of distances between cooling channels and cooled part faces.

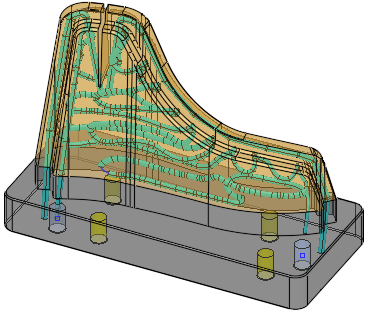

Part on which the function is to be performed.

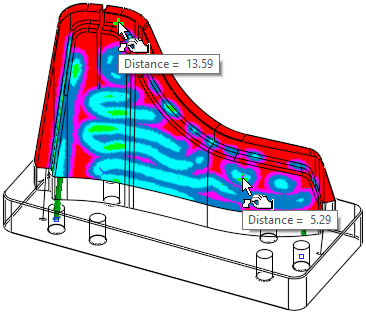

Analysis result.

General Interaction

The following is the Feature Guide for Cooling Distance Map.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the cooling channels to be analyzed.

Required Step 2 : Pick the part faces, the distances from which the cooling channels will be analyzed.

Required Step 3 : Analyze the distances between the selected cooling channels and the part faces.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
