Customized Hole Tolerance: Table of Holes (TOH)
The following image shows an example of Table of Holes (TOH) with customized hole tolerance data.
 |

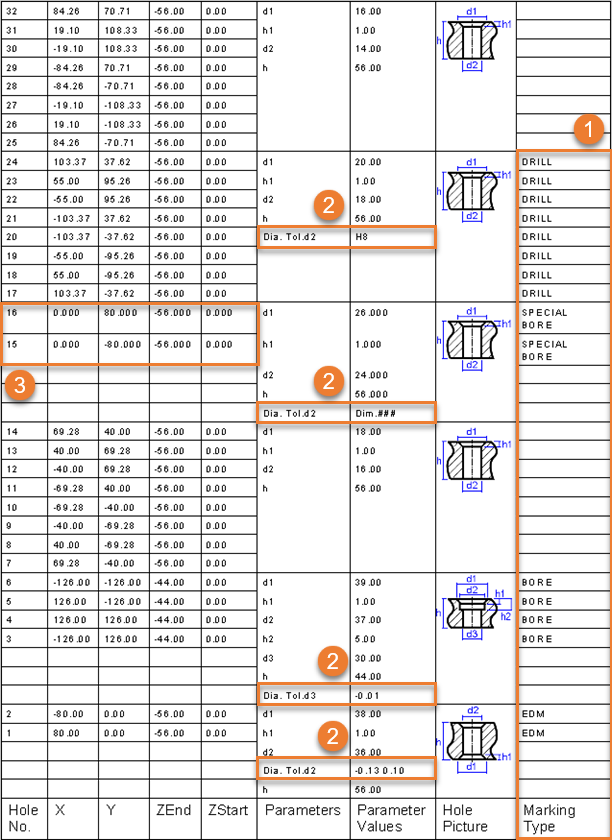

Item 1: Shows a new, user-defined column named "Marking Type" that was added to the TOH, which displays the Customized Hole Tolerance group names. Item 2: Depicts Attached Attributes from the Customized Hole Tolerance groups. Item 3: Shows Digits of Precision attached to a hole, affecting the XYZ precision of this hole position. |
See Table of Holes (TOH) for more information on TOH's standard functionality (without customized hole tolerance data).
|
