Symmetry Oblique Dimensions

Access: Open this function from one of the following locations:

  • Click the button in the toolbar.

  • Select Symbols > Textual > Dimension from the menu bar.

  • Select Dimension on the popup menu (right-click the graphics area).

Set the Symmetry dimensions to Oblique dimensions. See Inspection Dimension, below.

Creating an symmetry oblique dimension

Create a Symmetry dimension.
The symmetry dimension is displayed and the Dimension dialog shows the relevant labels and values:

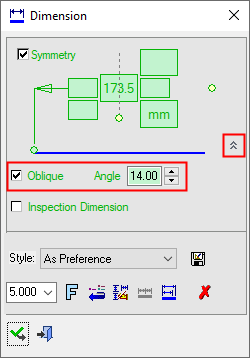

Press the Expand toggle button on the Dimension dialog to display additional parameters.

Click the Oblique checkbox and set the required angle value to display the symmetry dimension as an oblique dimension.

Inspection Dimension

Inspection Dimension

Surround dimensions with a rounded outline. This means that it is a dimension that should be inspected/verified after production.


If a tolerance is given, the rounded outline also encompasses the tolerance.
Examples:

Linear Dimension:
Inspection Dimension OFF :

Linear Dimension:
Inspection Dimension ON :

Linear Dimension with tolerance:
Inspection Dimension ON :







Diametric Dimension:
Inspection Dimension OFF :

Diametric Dimension:
Inspection Dimension ON :

Diametric Dimension with tolerance:
Inspection Dimension ON :
