Controlling Section ON/OFF Parameters
Access: A view is created under the currently active sheetactive sheet(either double-click the sheet name
in the Drawing Tree or right-click the sheet name and select Activate Sheet). The View Creation dialog can be accessed using one of the following methods:
-
Click
in the toolbar. -
Right-click the currently active Sheet item
in the Drawing Tree and select View Creation. -
Right-click the graphics area and select View Creation.
-
Select Views > View Creation > View Creation from the Drafting menu bar.

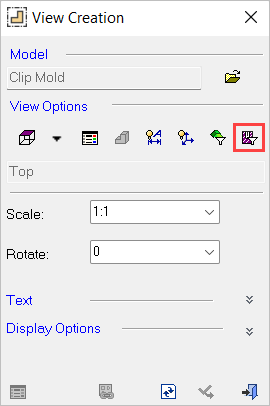

Select Section On/Off
from the View Creation dialog's View Options area.
The Section ON/OFF option allows you to select the objects in a set that will be sectioned in a section view.
|

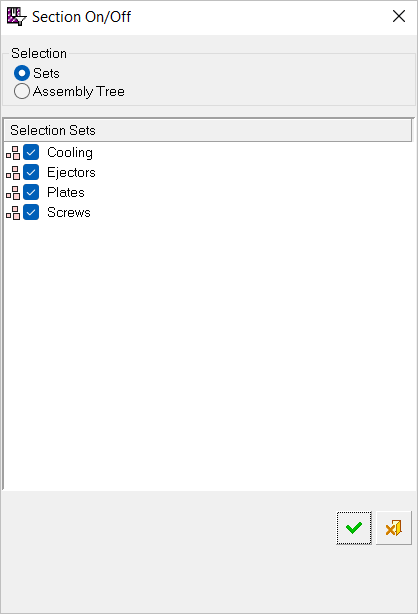

Section On/Off Filter dialog for Sets |

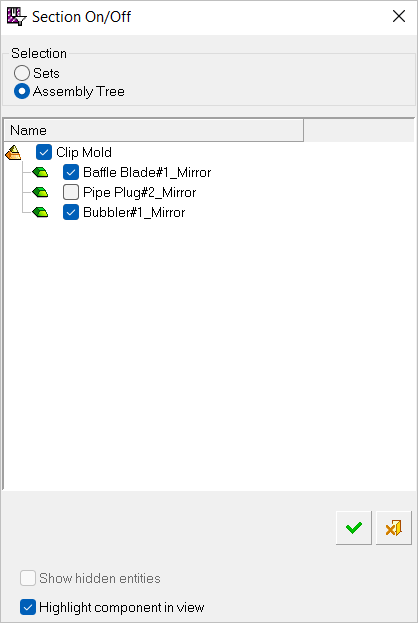

Section On/Off Filter dialog for Assembly Tree |
|
|
|
Sets

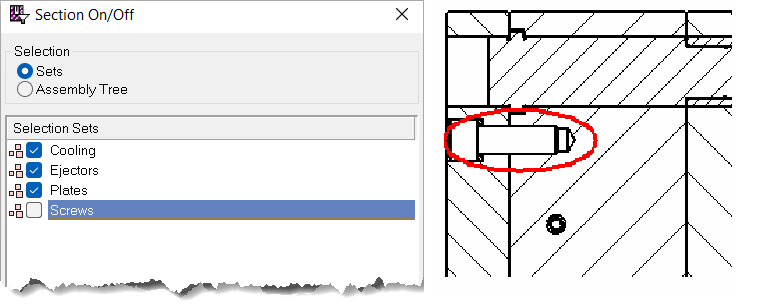

In the following example, the components of a screw have been deselected and therefore will not appear as sectioned in the view.
-
Select Section On/Off
in the View creation dialog.
-

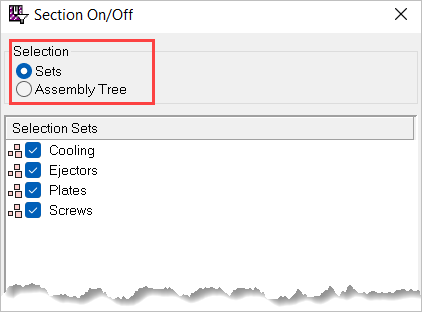

The Section On/Off dialog is displayed. Select Sets in the Selection area.
-

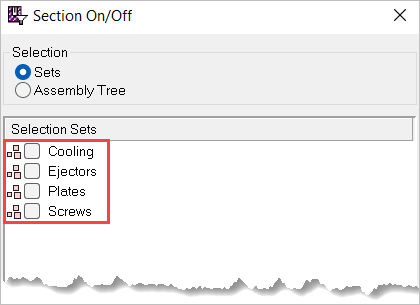

Select the checkbox for the part(s) to be displayed. Hold down the Ctrl key to select more than one non-contiguous item or the Shift key to select the multiple adjacent items.
The Unassigned Assembly Set contains all left-over geometry (geometry not assigned to any set).
-
Click OK
and <exit><exit>. Objects that were not selected are not shown as sectioned in the view.
Assembly Tree
-
Select Section On/Off
in the View Creation dialog.
-

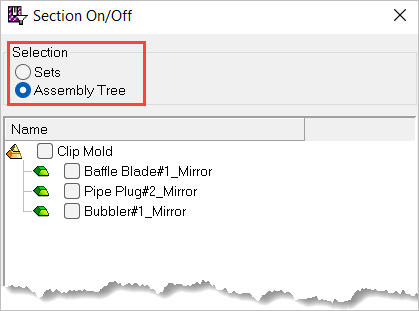

The Section On/Off dialog is displayed. Select the Assembly Tree in the Selection area.
-

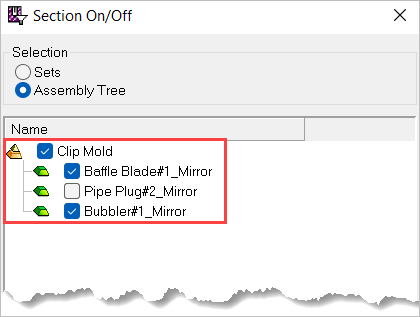

Select/deselect the checkboxes of the sub-assemblies and/or their parts to be sectioned/not sectioned in the view. The components of the selected checkboxes are sectioned in the view and the components of deselected checkboxes are not sectioned in the view. (The sub-assemblies appear in the Section On/Off hierarchically like they do in the Cimatron Explorer.)
-

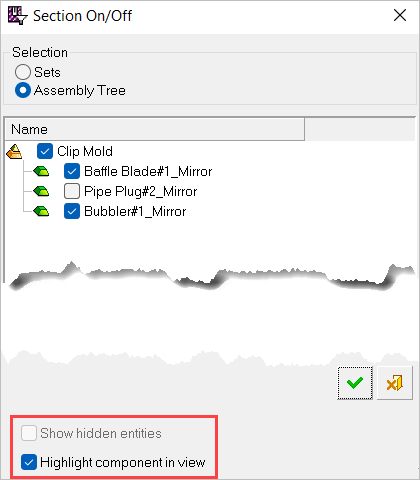

Select the checkbox options at the bottom of the dialog as required (see Options definitions below).
-
Click OK
and <exit><exit>. The deselected entities are not sectioned in the view.
Options
Some or all of the following checkbox options appear at the bottom of the Part Filter dialog.
|
Show Hidden Entities |
Select this checkbox to display entities that were hidden in sets in the part file. |
|
Highlight Component in View |
Select this checkbox to highlight the sub-assemblies and/or their parts in the section as the appropriate checkboxes are selected. |
Note: The Section On/Off default settings are defined either in the Catalog or Cimatron Explorer.
|
