Align Section Line

Creating points through which the section line will pass

1. Pick the required through-point(s) on the geometry and <exit><exit>(middle mouse button) when finished. The selected points are marked on the geometry and when the cursor is moved over them, their alignment lines are displayed:

2. Draw the section line using the alignment lines to indicate where to position the line.

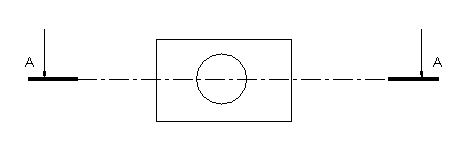

A section line is drawn through the picked points.

Note: The section line is associative to the through-points selected. It will maintain its position relative to the geometry even after the geometry is modified.
