5X Applications
> Deburring
Automatically program deburring operations by selecting geometry, surfaces or an entire model. The toolpath considers the machine axis limits and holder to create a collision-free toolpath. Users can use it for 3 axis, 4 axis and 5 axis toolpaths.
The purpose of deburring is to remove burrs (which are usually left on external sharp edges) or to chamfer these sharp edges.
The machined edges can be automatically detected or manually specified. The machining itself can be done as a three, four or full five axis toolpath, with automatic linking between segments and automatic collision detection.
This function supports only ball or lollipop cutters and the geometry must be of good quality for the automatic edge detection to work as expected.

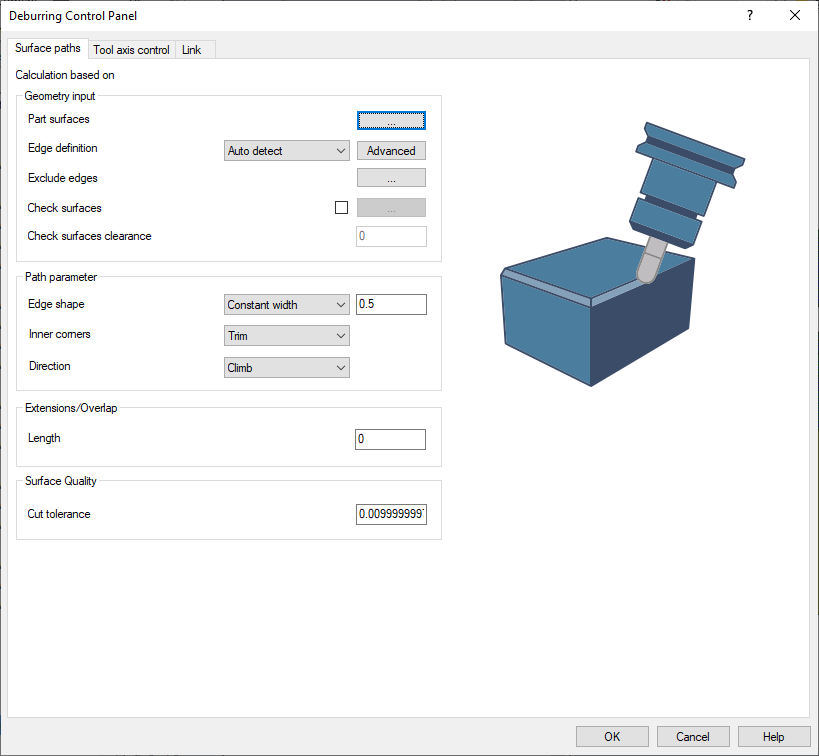

To display additional parameters, click the relevant tab in the dialog image below.
Tabs:

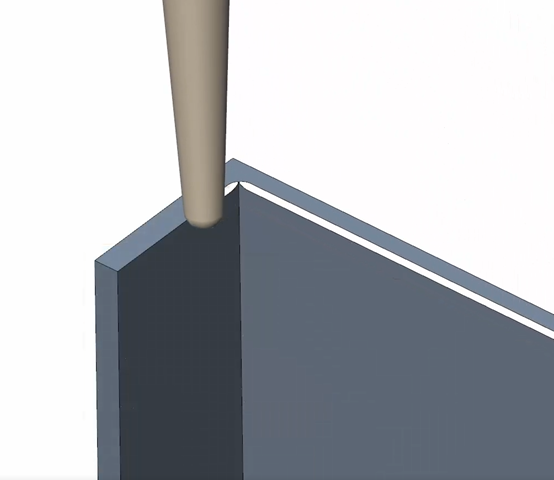

Example
Deburring
|
