Expand to Round
Access: Open this function from one of the following locations:
-
Select the Expand to Round
function
from the Face
Selection Modes dropdown list in the
Selection
Floating toolbar.
-
Select Edit > Selection > Expand to Round from the menu bar.
When selecting faces, expand from the picked round face(s) to select all faces that are part of the same round faces chain.
Expand the selection to the rounded area

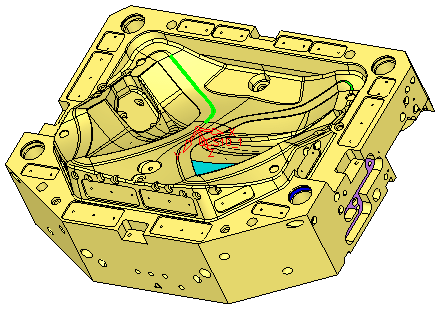

InvokeInvoke the function and then select the required rounded face (marked in green):

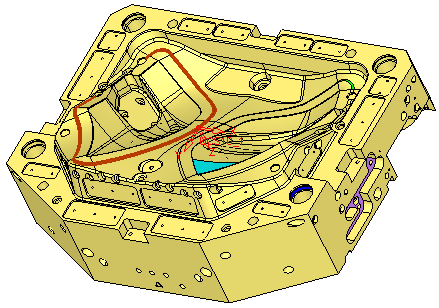

The entire rounded area is automatically selected:
|
