File Information

Access: To display the File Information dialog, press the button (on the top right corner of the Import dialog). This dialog displays relevant information about the imported file.

This dialog displays relevant information about the imported file.

There are two types of information dialog:

For Assembly files

For all other files

Assembly File Information Dialog

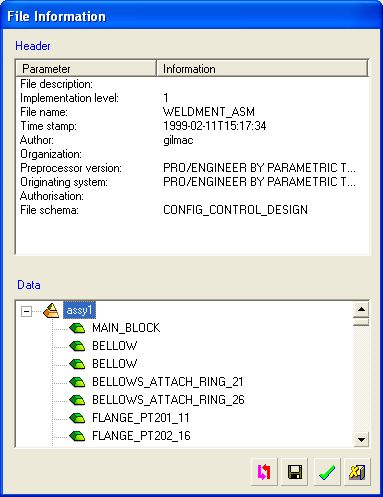

This dialog displays relevant information about the imported file and also displays the assembly tree structure.

All other imported files

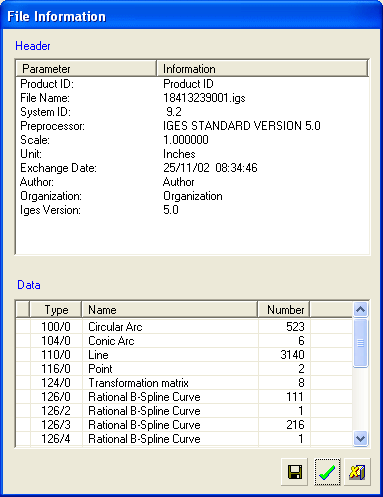

This dialog displays relevant information about the imported file:

Select the appropriate action in the File Information dialog:

Switch data view
(tree/entities)

This button is only displayed for IGES and STEP assembly files. This button switches the display of the File Information dialog from showing the assembly tree to showing the number of entities in the file, and vice versa.

Start Import

Start the import operation and exit the dialog.

Cancel

Cancel the import operation and exit the dialog.

Save to File

Save the information in the dialog as a text file.
