GPP2 DF2 Editor - Post Tab
Access: Open this function from the following location:
-
Run the GPP2_DF2_Editor.exe from the following folder:
...\Program Files\Cimatron\Cimatron\2026.0\Program
Open the appropriate .DF2 file in the post2 folder.
...\ProgramData\Cimatron\Cimatron\2026.0\Data\It\var\post2

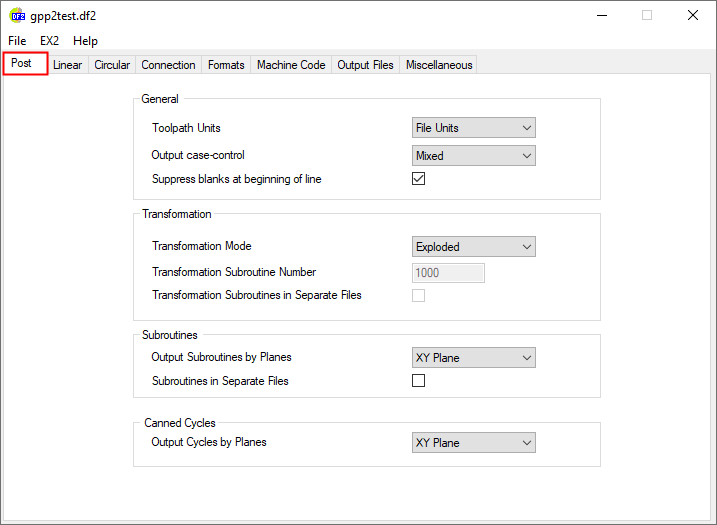

When the DF2 Editor is displayed, select the Post tab.
The DF2 configuration file contains a large set of parameters used to define how GPP2 operates in a given post-processor. Many of these parameters have associated system variables that can be accessed or modified in the EX2 program. These variables can also be used in the post-processor interaction in order to allow the end-user to change some of the values.
These DF2-associated system variables are described in GPP2 - DF2-Related Variables.
To navigate this dialog in the Help, either click on the tabs or the links to the right.
|
|
The DF2 Editor contains the following additional tabs: |
|
