Automatic ID Num

Access: Open this function from one of the following locations:

  • Click the button in the toolbar.

  • Select Symbols > Automatic Symbols > Automatic ID Number from the menu bar.

Automatically display the ID numbers of an assembly view.

Automatically display the ID numbers

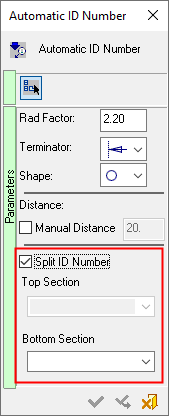

  1. InvokeInvoke (for more, click Access at the top of this Help topic) the Automatic ID Number function. The Automatic ID Number dialog is displayed.(Click any parameter in the Automatic ID Number dialog below (left) for an explanation).

    The default settings for the Split ID Number checkbox (ON or OFF), the position of the ID number (top or bottom) and also the position and contents of the text field, are set in the Preferences.

    When not split, the default Rad. Factor for ID Numbers is used. When split, the default Rad. Factor for Datum Targets is used. These defaults are set in the Preferences.

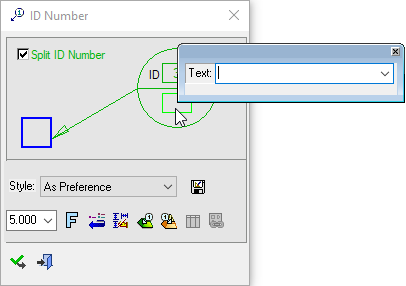

    Though the default contents of the text field can be set in the Preferences, this can be changed when creating or editing ID Numbers.

    When switching from split mode to single, only the ID number is displayed.

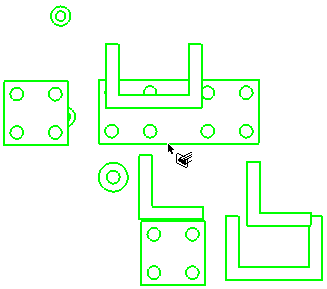

  2. Pick the required assembly view.

  3. Set the Parameters.

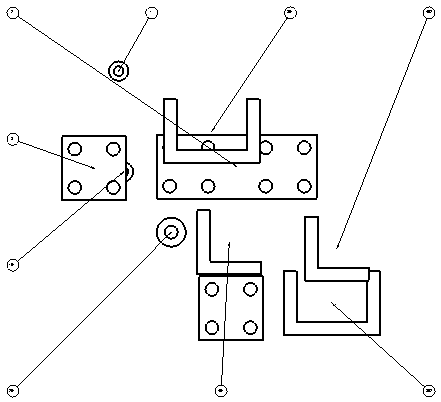

  4. Click OK or Apply to display the ID numbers:
