Setting Default Parameters

It is possible to set default parameters for one entity to another entity of the same kind.

To set default parameters:

  1. Double-click on the dimension parameters to be copied (original) and <exit><exit>(middle mouse button).

  2. Create a new entity of the same kind in the usual manner.

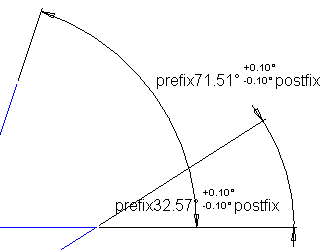

The example below shows a copied angular dimension:

The new dimension contains the same parameters as the original one.

Note: Dimension parameters have to be of the same kind in order to be set as a new default.
