Geometrical Tolerance Frame

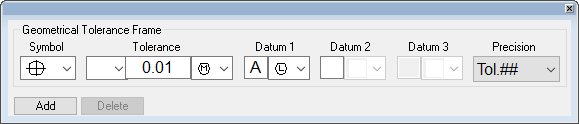

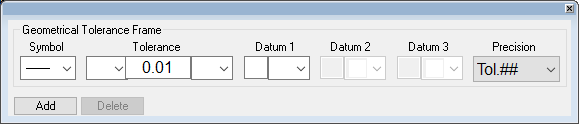

Display the Geometrical Tolerance Frame for editing. A maximum of three rows can be added.

You can edit the Geometrical Tolerance Frame data as required. For example, set the precision level or select an appropriate symbol from the dropdown list.

All changes in this dialog are reflected in the Geometrical Tolerance dialog.
