Group Control
Access: The Group / Individual Control toggle option is displayed in the 2nd and 3rd stages ( Required Step 2 and Optional Step 1 ) of Add Component and Add From Catalog, when using the options:
-
Place by UCS
-
Place on Face - By Sketch
-
Place on Face - By Points
When adding or editing multiple instances of a component, Group Control applies one set of parameters to all the instances.
Group Control is used to control all the instances, as a group, by manipulating the parameters in the 2nd and 3rd stages of the Add Component and Add From Catalog functions (Required Step 2 and Optional Step 1).
If a single component is added, the Group / Individual Control option is not available.
Example:

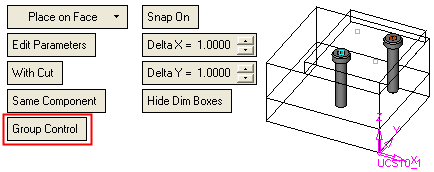

Required Step 2
If Group Control is selected, changes to parameter values affect all the instances.

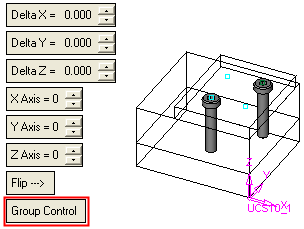

Optional Step 1
If Group Control is selected, any changes to parameter values affects all the instances.

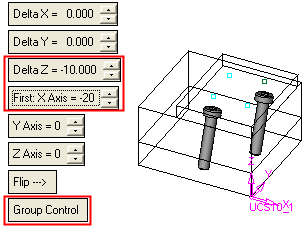

For example, the indicated parameters have been changed, causing all the instances to move.
|
