Importing Files in Batch Mode
Import several files in a single operation.
Note: For information regarding associativity in import/export operations in the Part application, see Associativity.
Files of mixed file types can be listed in a batch file (.bch) and imported into Cimatron in one operation.
Interaction
Create an ASCII text file listing the full path names of the files to be imported. These files may be of mixed file types (IGES, CATIA, etc.).

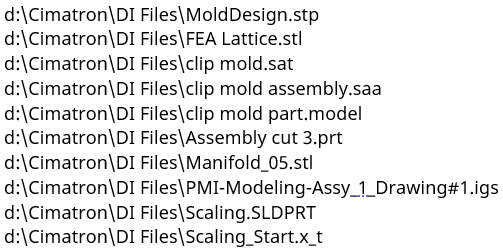

For example:
Save the file with the file name suffix .bch.

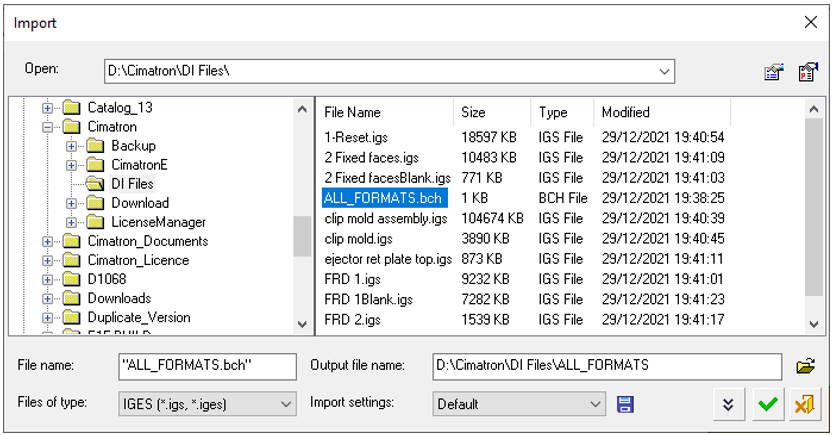

At the Import dialog, browse to the appropriate directory and select the required batch (.bch) file. The file type in the Files of Type field is not important as the batch files are displayed, if they exist. For example:
Click OK
.

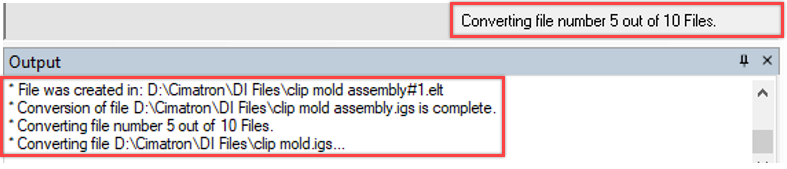

Messages displayed in the Output Pane are updated with the import conversion progress.
|
