Individual Control: Reset Individual
Access: The Group / Individual Control toggle option is displayed in the 2nd and 3rd stages ( Required Step 2 and Optional Step 1 ) of Add Component and Add From Catalog, when using the options:
-
Place by UCS
-
Place on Face - By Sketch
-
Place on Face - By Points
When adding/editing multiple instances of a component, Individual Control provides individual control over the parameters of each instance.
At any time (while in creation or in edit mode), parameters values changed under Individual Control can be reverted to their original values (at the time of the Add operation), by using the Reset Individual button.
Example:

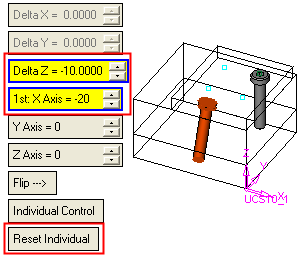

The highlighted cap screw is an instance whose parameters have been changed under Individual Control. These parameters are highlighted in yellow and their boxed borders are highlighted in the Individual Color defined in the Preferences (Modeling/Colors/Add Operation); in the example below, the changed boxed parameter highlight color is blue.
Press the Reset Individual button to reset the original parameter values. At this stage, the Reset Individual button is dimmed.
|
