Cimatron Initial Display

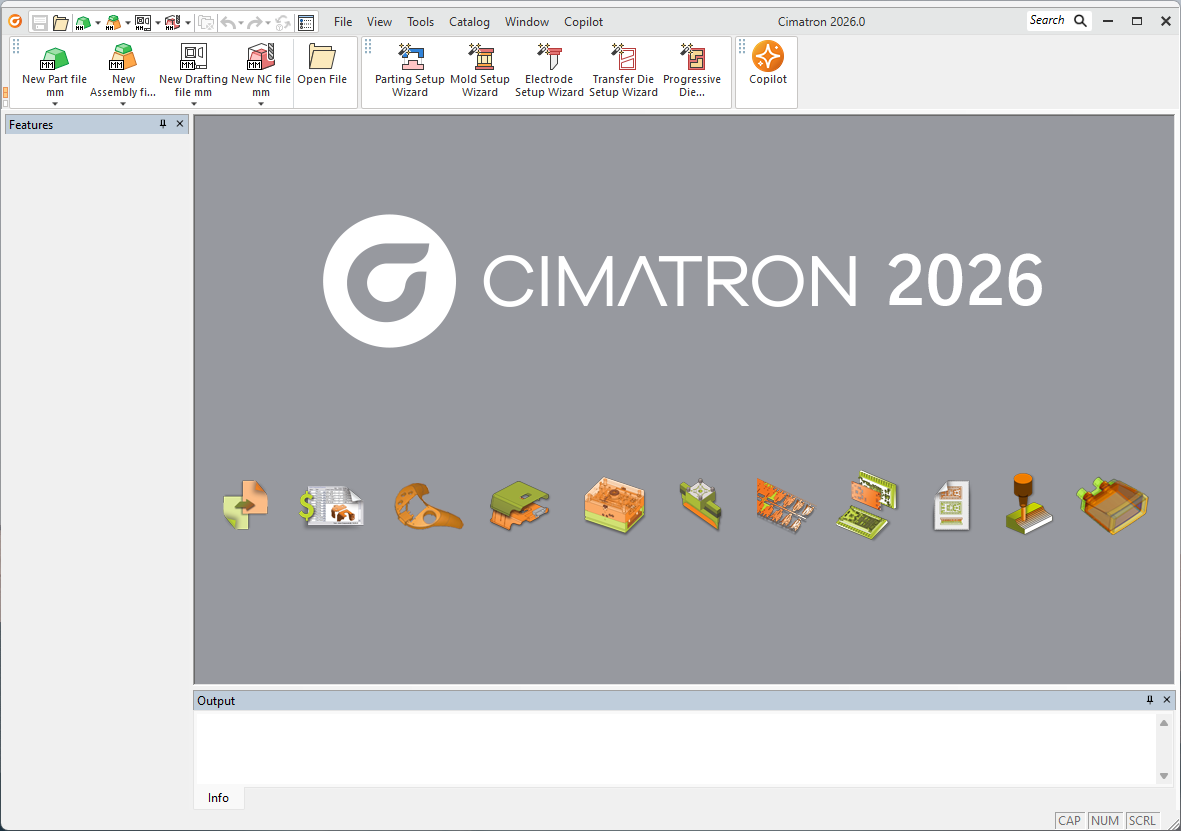

When Cimatron is launched and no files are open, the initial display is as shown below.

The display of some elements that make up the system window (such as the menu bar, toolbars, and trees) depends on the type of file (Part, Assembly, Drafting, or NC Manufacturing) that is currently active in the system window.

Click on an item in the dialog for a description.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
