Invert Active Object
The Invert Active Object parameter is available only for open objects and deals with issues of object direction.
Example using Remove > Extrude:
|

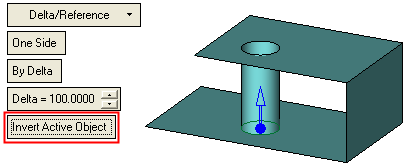

Remove > Extrude is used on a contour to form a cylinder, using the parameters shown below. In this case, the result is as follows, which is not as required. |
|
|
|
|

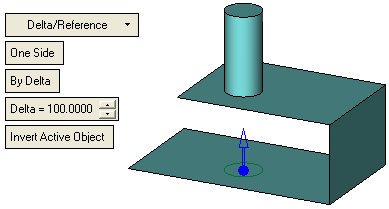

Press the Invert Active Object option to move the cylinder (the active object) the Delta distance in the inverse direction. Pressing the option again, returns the cylinder to its original location.
Example using Remove > Pipe:
|

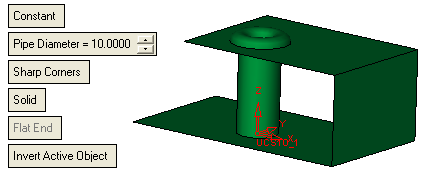

Remove > Pipe is used on a contour to form a pipe, using the following parameters: |
The result is as follows: |
|
|
|
|

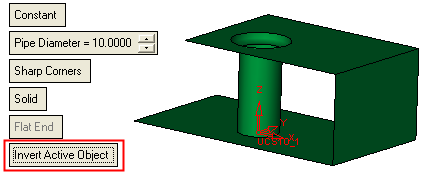

Press the Invert Active Object option to invert the pipe (the active object). |
The result is as follows: |
|
|
|
|
