Loading a Mechanism Assembly
: Adjusting / Parameters & Formulas
Access:
-
Click the
button, or select Assembly
> Add From Catalog from the Assembly
menu bar. The function also appears on the Graphics
Area popup submenu. -
Select a Mechanism Assembly from the Catalog.
Press the Expand button

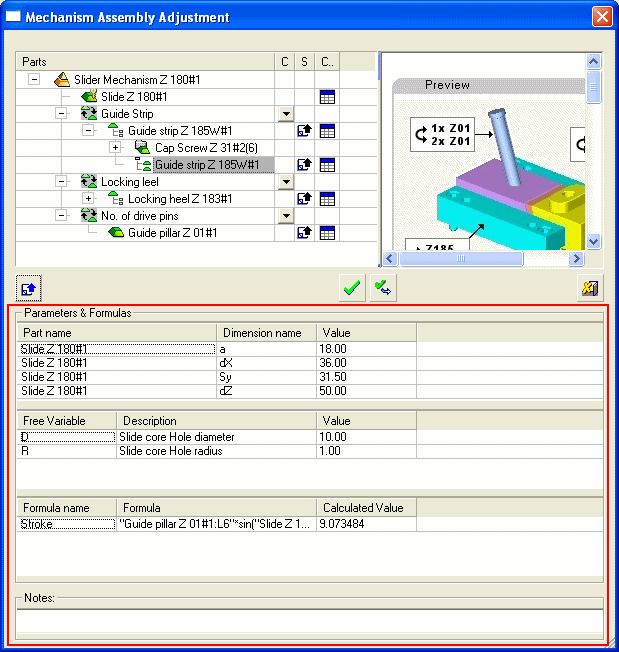

to display the lower part of the dialog, Parameters & Formulas.
This part of the dialog shows:
Free Dimension
The Free Dimension section shows the parts in the mechanism assembly that include free dimensions in their catalog table. The dialog shows their dimension names and the values of the dimensions. The dimension values may be changed.
Free Variables
The Free Variable section displays any free variables if they were defined, together with their description and value. The values may be changed.
Formulas
The Formula Name section shows a list of formulas that were defined when the Mechanism Assembly was saved. the formulas and the calculated values are read-only.
Notes
The Notes section enables you to enter any appropriate text note.
|
