Statistics Docking Pane

The Statistics Docking Pane show useful information about the machining process.

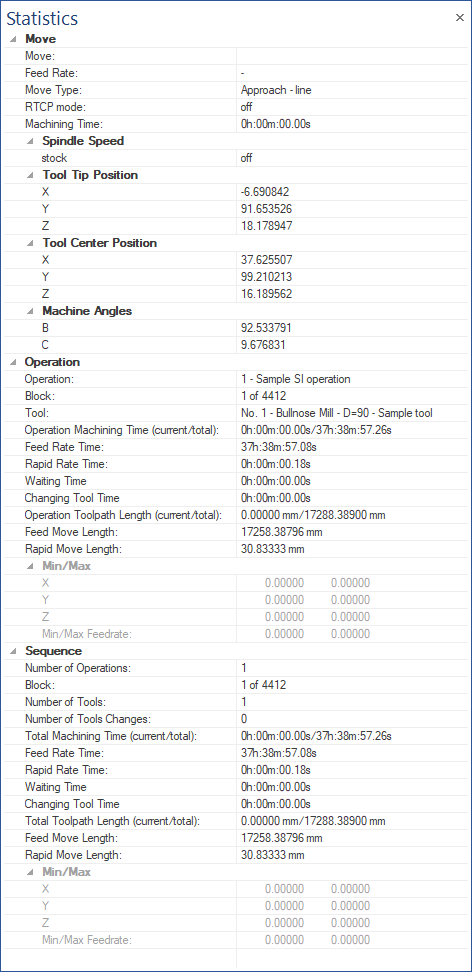

It is grouped into 3 main sections, click the image to jump to the descriptions for that panel:

• Move: this shows information about the current move

• Operation: this shows information about the current operation

• Sequence: this shows information about all operations

Move section

This shows information about the current move:

• Move: Block number for the current move

• Feed rate: Current move (FEED or RAPID)

• Move Type: Type of the current move (approach-line, retract - line, contour-line;contour- arc; lead-in/out-arc)

• RTCP mode: Specifies if either machine angle based or vector based interpolation functionality is enabled or not for the current move

• Machine Time: Machining time for the current move

• Spindle Speed: Information related to spindle setting for the current move

• Tool Tip Position: Details related to X, Y, Z coordinates of the tool tip, for the current move

• Tool Center Position: Details related to X, Y, Z coordinates of the tool center, for the current move

• Machine Angles: Details related to machine angles that are set for the current move

Operation section

This shows information about the current operation:

• Operation: Number of the current operation and also the comments introduced by the user

• Block: Current block number from current operation/total blocks numbers of that operation

• Tool: Tool details

• Operation Machining Time (current/total): Machining time for the current operation (the total time of the moves, that were simulated from the current operation/the total time of all the moves from that operation)

• Feed Rate Time: Total feed rate time, considering the entire current operation (feed moves)

• Rapid Rate Time: Total rapid rate time, considering the entire current operation (rapid moves)

• Waiting time: Total time, defined as waiting time, from current operation

• Changing Tool Time: Total time, defined as changing tool time, from current operation

• Operation Toolpath Length (current/total): Toolpath length for the current operation (the total length of the moves, that were simulated from the current operation/the total length of all the moves from that operation)

• Feed Rate Length: Total toolpath length, considering the entire current operation (feed moves)

• Rapid Rate Time: Total toolpath length, considering the entire current operation (rapid moves)

• Min/Max: Minimum/maximum values for X, Y and Z axis and feed-rate, considering the entire current operation.

Sequence section

This shows information about all operations

• Number of operations: Total number of operations from the entire simulation

• Block: Current block number from the simulation/total blocks numbers from the entire simulation

• Number of Tools: Number of tools used in the entire simulation

• Number of Tools Changes: How many times the tool was changed in the entire simulation

• Total Machining Time (current/total): Machining time for the entire simulation (the total time of the moves, that were simulated/the total time of all the moves from the entire simulation)

• Feed Rate Time: Total feed rate time, considering the entire simulation (feed moves)

• Rapid Rate Time: Total rapid rate time, considering the entire simulation (rapid moves)

• Waiting time: Total time, defined as waiting time, from the entire simulation

• Changing Tool Time: Total time, defined as changing tool time, from the entire simulation

• Total Toolpath Length (current/total): Toolpath length for the entire simulation (the total length of the moves, that were simulated /the total length of all the moves from the entire simulation )

• Feed Rate Length: Total toolpath length, considering the entire simulation (feed moves)

• Rapid Rate Time: Total toolpath length, considering the entire simulation (rapid moves)

• Min/Max: Minimum/maximum values for X, Y and Z axis and feed-rate, considering the entire simulation.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
