ModuleWorks Keyboard Shortcuts

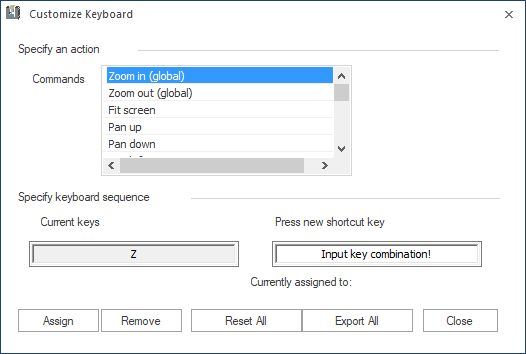

Use the dialog to assign the keys on the keyboard.
Commands
|
Command |
Default key(s) |
Description |
Representation |
|---|---|---|---|
|
Zoom in (global) |
Z |
Zoom in at a fixed rate per key press. |
|
|
Zoom out (global) |
Shift+Z |
Zoom out at a fixed rate per key press. |
|
|
Fit screen |
F |
Adjust the view to fit the screen |
|
|
Pan up |
Ctrl+UpArrow |
Pan the view up in a 2D plane. |
|
|
Pan down |
Ctrl+DownArrow |
Pan the view down in a 2D plane. |
|
|
Pan left |
Ctrl+LeftArrow |
Pan the view left in a 2D plane. |
|
|
Pan right |
Ctrl+RightArrow |
Pan the view right in a 2D plane. |
|
|
Rotate up |
Up Arrow |
Rotate the view upwards. |
|
|
Rotate down |
Down Arrow |
Rotate the view downwards. |
|
|
Rotate left |
Left Arrow |
Rotate the view to the left. |
|
|
Rotate right |
Right Arrow |
Rotate the view to the right. |
|
|
Zoom in (to cursor) |
X |
Zoom in to the cursor location. |
|
|
Zoom out (to cursor) |
Shift+X |
Zoom out from the cursor location. |
|
|

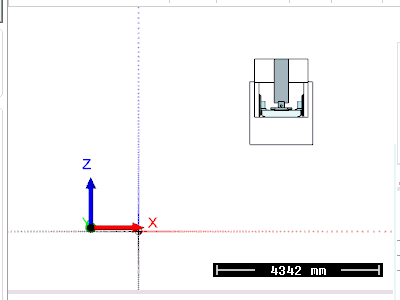

Rotate left (orbital) |
Alt+Left Arrow |
Rotate to the left around the center of the simulation area. |
|
|
Rotate right (orbital) |
Alt+Right Arrow |
Rotate to the right around the center of the simulation area. |
|
|
Front view |
Ctrl+1 |
Set the view to Front |
|
|
Back view |
Ctrl+2 |
Set the view to Back |
|
|
Left view |
Ctrl+3 |
Set the view to Left |
|
|
Right view |
Ctrl+4 |
Set the view to Right |
|
|
Top view |
Ctrl+5 |
Set the view to Top |
|
|
Bottom view |
Ctrl+6 |
Set the view to Bottom |
|
|
Upper Left Near Corner View |
Ctrl+Shift+1 |
Set the view to the upper left corner of the Front face. |
|
|
Upper Right Near Corner View |
Ctrl+Shift+2 |
Set the view to the upper right corner of the Front face. |
|
|
Bottom Right Near Corner View |
Ctrl+Shift+3 |
Set the view to the bottom right corner of the Front face. |
|
|
Bottom Left Near Corner View |
Ctrl+Shift+4 |
Set the view to the bottom left corner of the Front face. |
|
|
Upper Right Far corner View |
Ctrl+Shift+5 |
Set the view to the upper right far corner. |
|
|
Upper Left Far Corner View |
Ctrl+Shift+6 |
Set the view to the upper left far corner. |
|
|
Bottom Left Far Corner View |
Ctrl+Shift+7 |
Set the view to the bottom left far corner. |
|
|
Bottom Right Far Corner View |
Ctrl+Shift+8 |
Set the view to the bottom right far corner. |
|
|
Isometric view |
Ctrl+7 |
Set the view to Isometric |
|
|

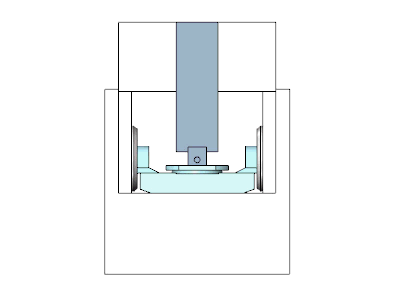

Rotate left (90 deg) |
Shift+Left Arrow |
Rotate the view left by 90 degrees. |
|
|
Rotate right (90 deg) |
Shift+Right Arrow |
Rotate the view right by 90 degrees. |
|
|
Rotate up (90 deg) |
Shift+Up Arrow |
Rotate the view upwards by 90 degrees. |
|
|
Rotate down (90 deg) |
Shift+Down Arrow |
Rotate the view downwards by 90 degrees. |
|
|
Previous view |
Ctrl+Z |
Show the previous view |
|
|
Toolpath Backplot Mode |
B |
Switch the simulation to Backplot Mode |
|
|
Material Verification Mode |
V |
Switch the simulation to Material Removal Mode |
|
|
Tool Focus |
T |
Switch the simulation view to Tool Focus |
|
|
Workpiece Focus |
W |
Switch the simulation view to Workpiece Focus |
|
|
Machine Focus |
M |
Switch the simulation view to Machine Focus |
|
|
Step forward |
Page Down |
Jump to the next move |
|
|
Step backward |
Page Up |
Jumps to the previous move |
|
|
Step 10 moves forward |
Ctrl+Page Down |
Jump 10 moves forwards. |
|
|
Step 10 moves backward |
Ctrl+Page Up |
Jump 10 moves backwards. |
|
|
Step 100 moves forward |
Ctrl+Alt+Page Down |
Jump 100 moves forwards. |
|
|
Step 100 moves backward |
Ctrl+Alt+Page Up |
Jump 100 moves backwards. |
|
|
Step 500 moves forward |
Ctrl+Alt+Shift+Page Down |
Jump 500 moves forwards. |
|
|
Step 500 moves backward |
Ctrl+Alt+Shift+Page Up |
Jump 500 moves backwards. |
|
|
Run |
R |
Start the simulation |
|
|
Stop |
S |
Stop the simulation |
|
|
Pause |
P |
Pause the simulation |
|
|
Previous Operation |
Shift+Page Up |
Jump to the previous operation |
|
|
Next Operation |
Shift+Page Down |
Jump to the next operation |
|
|
Restart |
Home |
Restart the simulation |
|
|
Loop |
L |
Run the simulation in a continuous loop |
|
|
Fast Run |
Space |
Run the simulation in Fast Forward |
|
|
Speed Up |
Num.+ |
Increase the simulation run speed |
|
|
Speed Down |
Num.- |
Decrease the simulation run speed |
|
|
Screenshot |
Ctrl+Shift+C |
Capture the graphic area |
|
|
Start/Stop Capture |
Ctrl+Alt+C |
Start/Stop the video capture of the graphic area |
|
|
Save Machine |
Ctrl+S |
Save the modifications you made to the machine during the Machine Edit Mode |
|
|
Load Machine |
Ctrl+O |
Load a machine into the Machine Simulator |
|
|
New Machine |
Ctrl+N |
Create a new machine definition. |
|
|
Load NC File |
Ctrl+L |
Open the Load Simulation File dialog |
|
|
Fullscreen |
F11 |
Switch the application to Fullscreen Mode. |
|

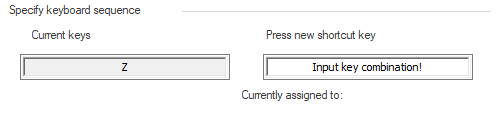

Specify keyboard sequence
- Current keys: show the current key(s) for the selected functionality.
- Press new shortcut key: show the new shortcut key pressed by the user for the selected functionality.
- Currently assigned to: show the functionality assigned to the selected key from "Press new shortcut key:". This is useful to avoid possible conflicts.
Action buttons
-
Assign: assign the chosen key(s) to the selected functionality.
If the key(s) is already assigned to another functionality, a pop-up message appears specifying the functionality to which the key is already assigned and asking if you want to reassign the shortcut key. Click Yes to re-assign the key to the new functionality.
- Remove: remove the assigned key(s) for the selected functionality, leaving it with no key assigned.
- Reset All: reset all the assigned keys for all functionalities to the default assignments.
-
Export All: create a *.keymap file that includes all keyboard and mouse shortcuts. The file can be loaded upon Machine Simulator startup.
- Close: close the window without any changes.
|
