Quick Access Toolbar

In the Machine Simulation Option window we have the Quick Access Toolbar options window. Use this toolbar to perform the following operations:

  • Add and remove any functionality (button) in the Machine Simulator.
  • Reorder the buttons from Quick Access Toolbar as you like.

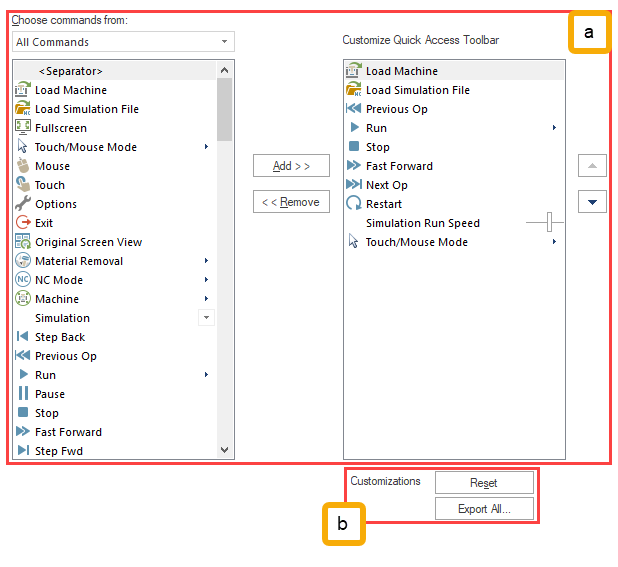

  1. Customize Quick Access Toolbar

    Customize the content of the Quick Access Toolbar and the order of the icons.

    • Choose commands from: allows the user to select different categories of buttons
    • Customize Quick Access Toolbar: it displays a list of the current button that will be available in the Quick Access Toolbar.
    • Add: adds a button from the available buttons
    • Remove: removes a button from the Quick Customize Access Toolbar
    • Up/Down ordering: move a the selected button in the Customize Quick Access Toolbar

  2. Customizations

    • Reset: set the Customize Quick Access Toolbar to default state.
    • Export All...: It will export all current settings.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
