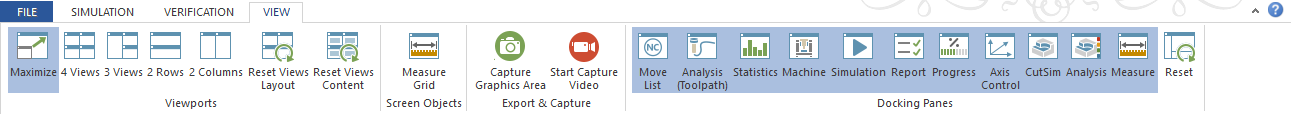

Ribbon Bar View

Used to set different viewports, quickly access some other functionalities, and show/hide Docking Panes.

There are four panes:

Viewports

The Viewports ribbon controls the Simulation Area splitting, offering the possibility to observe the simulation from four different perspectives.

  • Maximize: The default viewport, displays one single perspective over the simulation
  • 4 Views: Splits the Simulation Area into four viewports, offering the possibility to check different aspects of the same simulation in each one of them
  • 3 Views: Splits the Simulation Area into three viewports, offering the possibility to check different aspects of the same simulation in each one of them
  • 2 Rows: Splits the Simulation Area into two viewports, positioned one below the other, offering the possibility to check different aspects of the same simulation in each one of them
  • 2 Columns: Splits the Simulation Area into two viewports, positioned one aside the other, offering the possibility to check different aspects of the same simulation in each one of them\

Each of the Viewports' dimensions can be resized by dragging the grey edge between them.

  • Reset Views Layout: Restores the default dimensions of the viewport areas
  • Reset Views Content: Restores the default settings of of each viewport

Screen Objects

Measure Grid: The option to apply an adaptive measurement grid on the Simulation Area.

Export & Capture

  • Capture Graphics Area: takes a screenshot of the Simulation Area.
  • Start Capture Video: starts recording the Simulation Area. This button needs to be pressed again in order to stop the recording.

Note: The Export & Capture settings can be changed in the File > Options > Capture Menu.

Docking Panes

  • Move List: the pane containing the blocks information, along with the operations present in the simulation.
  • Analysis(Toolpath): the tab that allows analyzing various aspects of the toolpath.
  • Statistics: the tab that presents the simulation statistics.
  • Machine: the tab containing the machine tree configuration, with the possibility of editing the machine or the collision checking items.
  • Simulation: the pane managing the simulation pause conditions.
  • Report: the pane responsible of reporting events that occur during the simulation
  • Progress: the pane displaying the current progress slider
  • Axis Control: the tab controlling the axis movements.
  • CutSim: the tab controlling the material removal process, algorithms and precision.
  • Analysis(Stock): the tab that allows analyzing various aspects of the material removal process
  • Measure: the panel controlling measurement and chip detection
  • Reset: button that resets the layout of the application

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
