Verification Properties Settings

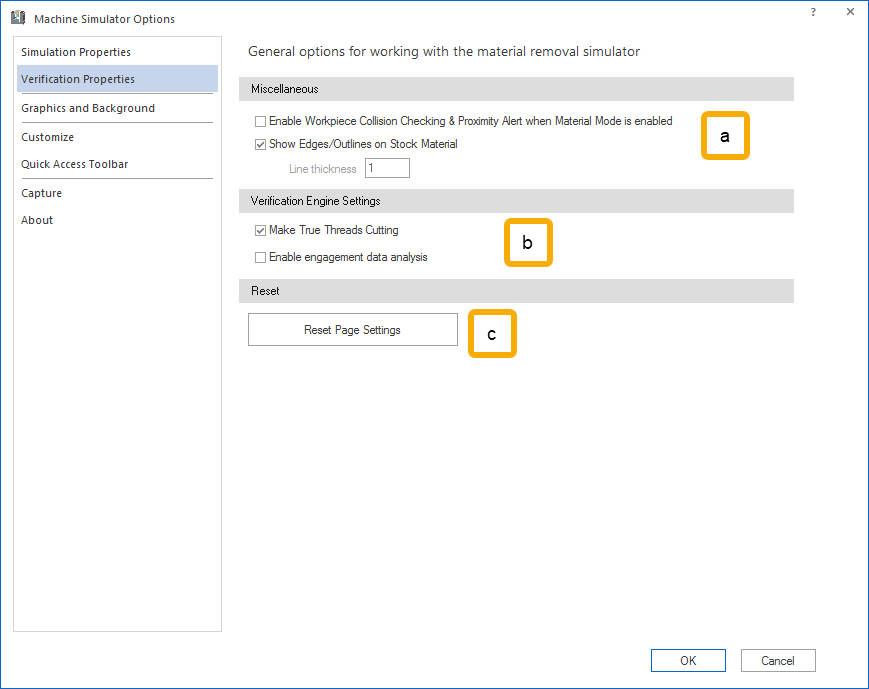

Verification Properties allows you to set the general options for working with the material removal simulator.

  1. Miscellaneous

    Enable Workpiece Collision Checking & Proximity Alert when Material Mode is enabled: When this option is enabled, collisions and proximity alerts are reported for the workpiece objects that are included in the collision checking groups.

    Show Edges/Outlines on Stock Material: Show outlines on the stock material.

  2. Verification Engine Settings

    Make True Threads Cutting: This option enables/disables True Threads Cutting.

  3. Reset

    Reset Page Settings: Reset all parameters to the factory settings.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
