Offset and Rotation

The Offset and Rotation options appear in numerous functions in Cimatron. They may appear in separate steps within a function or they may appear together in the same step.

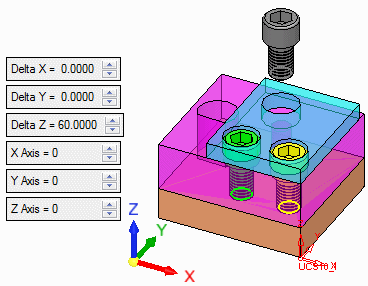

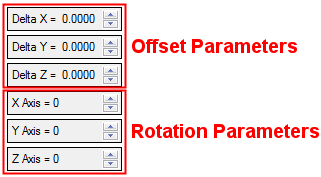

The following image shows both the Offset and the Rotation parameters.

Offset

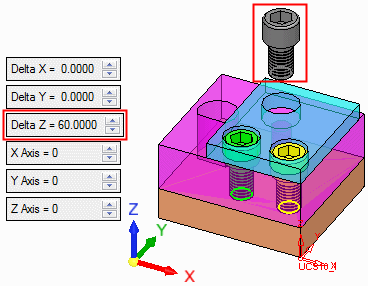

Set the offset parameters as required.	Offset parameter set, and result.

Rotation

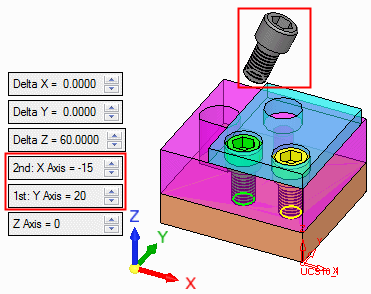

Set the rotation parameters as required.	Rotation parameters set, and result. The 1st, 2nd, etc. denotes the order in which the rotation parameters were defined.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
