Machine Parameters: Rapid Retract

The 5X Applications / 5X Production procedures have the following specific feed parameters:

Rapid Retract

Retract the tool at the default Rapid speed. The retract rate of the tool in mm/min. This parameter checkbox is selected by default. To retract the tool at a defined retract feed, unselect this parameter.

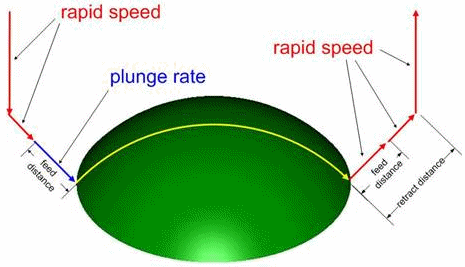

Machining with rapid retract:

If this parameter is not selected, the following parameter is displayed:

Retract Feed

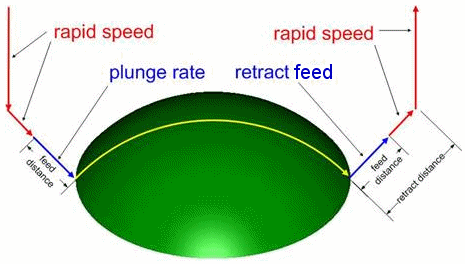

Retract the tool at a defined Retract Feed. Enter the retract feed. Machining with defined retract rate:
