Action: Change Home

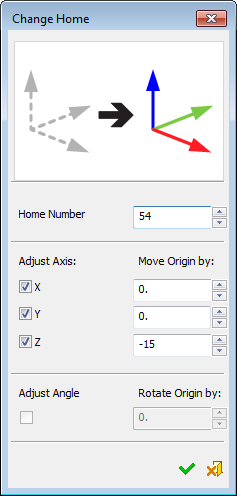

Set the Home position (part zero). The Change Home dialog is displayed:



Home Number

The number representing the Home to be set.
For example for a FANUC control, enter 54, for the G54 home.

Adjust Axis

These checkboxes define for which axes to adjust the home position.

Move Origin by

Set the coordinates of the measured point from the actual zero.
For example, if the measured result for Z is -15, enter Z=-15 to set the zero point 15mm higher.

All three axis are valid for all measurement cycles. The default values are zero.

Adjust Angle

Adjust the angle by a defined rotation value.

Notes: The available options depend on the selected measurement cycle and direction. Options that are not available are grayed out. For example:

  • Only the X and Y values can be changed for the Rectangle In measurement cycle.

  • The Z value can be changed only for the Z direction Point and 3D Corner measurement cycles.

  • Rotate by Angle is valid only for the Two Holes and Angle measurement cycles.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
