Drill: Depth

Depth / Low Point

Specify the drill depth or low point.

Calculate Max Depth	If holes are selected (rather than points), the system can calculate the maximum drill depth.

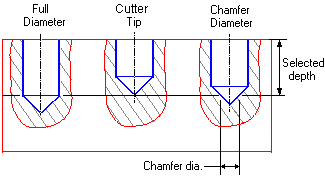

Cutter Tip	The cutter tip reaches the selected depth.
Full Diameter	The cutter reaches the full diameter at the selected depth.
Chamfer Diameter	The cutter reaches the selected depth at the chamfer diameter.
