Drill Retract / Retract Mode: Parameters
Choose one of the following to specify the retract distance of the drill cutter after a drill operation, and in the case of Drill retract parameters, how the cutter will move from one hole to the next:
|
Drill Retract Parameters |
Lathe Drill Retract Parameters |
||
|
To Init |
The drill cutter will jump to the Delta Init level of the next drilling point(s). |
To Clearance |
Retract to the Z-Clearance value. |
|
To Retract |
The drill cutter will jump to the Delta Retract level of the next drilling point(s). |
To Z-Top |
Retract to the Z-Top value. |
|
For each of the above options, the following parameters may be displayed: |
If the To Z-Top option is selected, the following parameter is displayed: |
||
|

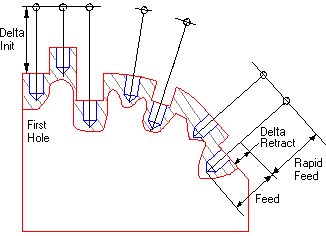

Delta Init |
The clear Z distance measured from the top of the first hole. For 4X or 5X drilling, this distance is normal to the surface. If other points are higher than the first point, the clear distance will be Delta Retract. |
Delta Retract |
The level from which the cutter changes from Rapid Feed to Feed rate during approach. |
|
Delta Retract |
The level from which the cutter changes from Rapid Feed to Feed rate during approach. |
|
|
|
Multiple |
Both To Init and To Retract are specified for a group of points.
|
||
|
