Wall and Floor Offset
Set the wall and floor offset parameters.
|
|
|
|
Wall Offset |
Floor Offset |
The wall offset is performed as a regular offset. In order to meet the definition of the floor offset, all the geometry triangles are shifted in the Z direction. The amount of the shift is the size difference between the wall offset and the floor offset.
For example: If the Floor Offset = 1.0 and the Wall Offset = 0.7, then the geometry shift = -0.3.

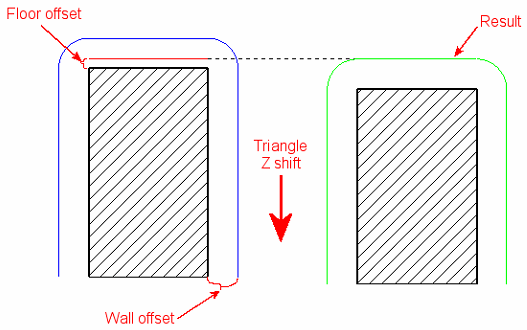

The result is as seen on the right in the picture above.
If there are Z Limits in the procedure, they are taken into consideration.
|
