Mill Final Pass

This parameter is displayed for 2.5 Axes Cleanup 2D Pocket and 2.5 Axes Cleanup 2D Profile procedures, and enables you to defines whether to mill in specific areas or to perform a final pass around the entire geometry.

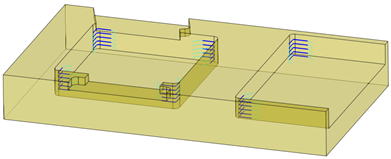

Mill Final Pass

Mill the final pass in the corners only.

When ON, the parameter Final Pass All Around is displayed:

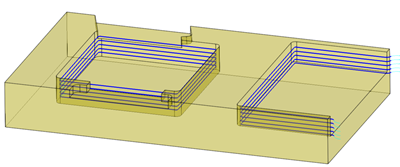

Final Pass All Around

Mill around the boundaries of the geometry, rather than entering and exiting the part many times.

Final Pass All Around

Don't mill around the boundaries of the geometry.
This is the default option.

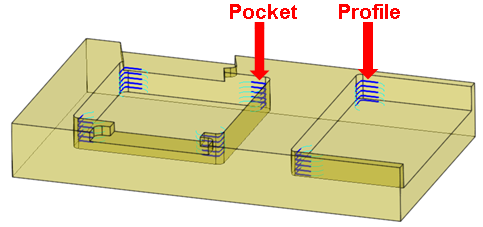

Mill Final Pass

Don't mill the final pass.
This is the default option.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
