Min. Stock Width

The minimum stock thickness value that should be ignored and not milled (for Legacy procedures available when the parameter Use Remaining Stock, is selected).

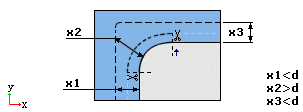

Any stock thickness larger than the Min. Stock Width value will be milled. For example, in the diagram below:

d = Min. Stock Width value
x1, x2,and x3 are the actual remaining stock.

In this case, only x2 is larger and will be milled.
