Tool Orientation - Tilt Lead

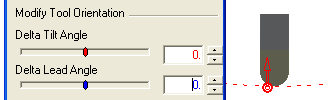

Set the Tilt and Lead Angle orientation of the tool. These can be defined either by entering the angle value in the appropriate field, or dynamically, by using the relevant slide controls.

Demo: Press the button below to view a short movie demonstrating the function:





Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
