Tool Trajectory: Penetrate

None

There will be no penetration - no machining under the reference surface.

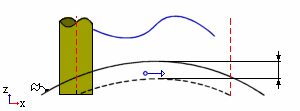

Depth

Define a penetration depth (machining depth) under the reference surface.

The parameter Depth is displayed - enter the required depth.
