Tool Trajectory: Down Pass Method

Down Pass Method

Single	Only one milling pass will be made on the surface. Illustration Illustration
Incremental Z	Down passes will be performed in Delta Z increments. You will need to specify Incr Z Above Surf / Incr Z Below Surf. Illustration Illustration

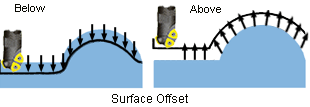

Surface Offset	Down passes will be performed by surface offsets. You will need to specify Offset Above / Below Surf. Illustration Illustration

Plunge Mill options:

Single	Only one milling pass will be made on the surface. Plunge Mill Illustration Plunge Mill Illustration
Multi Layer	Down passes will be performed in Delta Z increments. You will need to specify Incr Z Above / Below Surf. Plunge Mill Illustration Plunge Mill Illustration
