Preferences > Drafting > General > Colors > Dimensions

Access: Invoke this function from one of the following locations:

Navigate to Drafting > General > Colors > Dimensions.

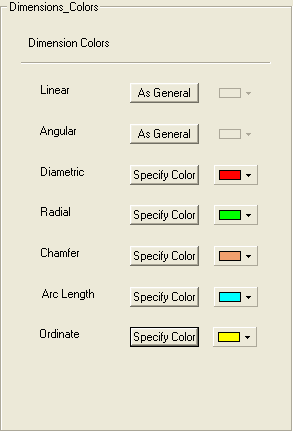

Set the default display color for each dimension type, or set a default color for all dimensions.

The colors that are set, As General,refer to the system default active color for Drafting entities; the default color is black.

Defining a general dimension color

  1. Toggle the appropriate As General / Specific Color button to As General. The colors that are set As General refer to the system default active color for Drafting entities; the default color is black.

Defining a color for specific dimensions

  1. Toggle the appropriate As General / Specific Color button to Specific Color.

  2. Click the color dropdown list to select a color to be displayed for the specific dimension.



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
