Electrode Preferences > Base > Cylindrical Base Marking
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Electrode > Base > Cylindrical Base Marking.
Define the parameter markings for a cylindrical base. These defaults are used when defining the marking for a circular blank.

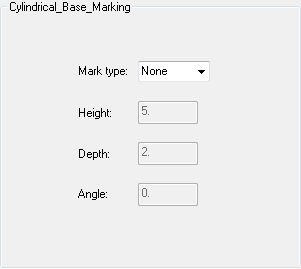

The Cylindrical Base Marking dialog is displayed.
Interaction
-
Define the parameter markings for a cylindrical base.
-
Mark Type
The options are None or Standard. -
If Standard is selected, the Height, Depth, and Angle fields become available.
-
Press the appropriate approval option.
|
