Electrode Preferences > Drafting > Assembly Drawing > Assembly General Settings

Access: Invoke this function from one of the following locations:

Navigate to Electrode > Drafting > Assembly Drawing > Assembly General Settings.

Define the general settings for electrode assembly drawings.

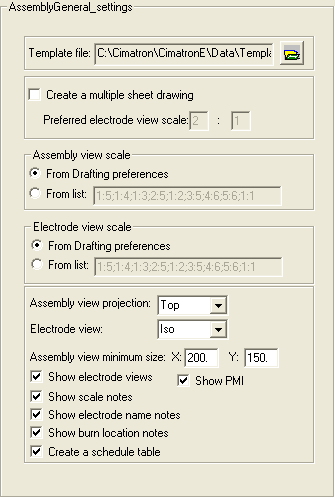

The Assembly General Settings dialog is displayed.

Interaction

  1. Define the general settings for electrode assembly drawings.

Template File

The default is the Cimatron supplied file. This template can be changed by clicking the file system icon. The browser searches only for *.tpl files and a different path can be selected using the browser only.

Create Multi sheet drawing

Create drawing with multiple sheets. If OFF the scale field is disabled.
The default if OFF.

Assembly view scale list

The permitted view scales list for the assembly view.

  • Table list: the user can add the permitted scales as a list in a format x1:y1;x2:y2;x3:y3, etc.

  • The separator is ";"

  • Up to 50 scales are allowed (~300 characters).

  • If zero or negative scales are added, they are ignored.

  • If an error is made in the format, the system skips to the next ";" and continues the search.

  • If there are duplicate values, the system deletes them.

  • The list always contains the scale 1:1 (even if it was never entered).

  • The system sorts the scale values in ascending order of size.

Preferred electrode view scale

The values in the box must be greater than 0.

Assembly view projection

Set the assembly view projection in the assembly drawing. The values in the dropdown menu are: Top, ISO.
The default is Top.

Electrode view projection

Set the electrode view projection in the assembly drawing. The values in the dropdown are: Top, ISO.
The default is ISO.

Assembly view minimum size

Set the minimum size of the assembly view in the assembly drawing. The size value is according to the units in the preferences (different defaults are required for mm and inch).

Show electrode views

Display/hide the electrode views in the assembly drawing.

Show PMI

Control the display of PMI in electrode drawings and in electrode assembly drawings.

In the Electrode environment, as electrode assembly drawings do not have views (they have frames instead) and the view creation mechanism is automatic, this option enables you to hide or show PMI in electrode assembly drawings (select the checkbox to show the PMI).

By default the option is selected and also shows PMI at lower levels.

Show scales notes

Display/Hide the notes representing the scale in the drawing. When the box is selected the system creates the notes.

Show electrode name notes

Display/Hide the electrode name notes. If the box is selected, the system creates the notes.

Show burn location notes

Display/Hide the burn location notes in the assembly drawing. If the box is selected, the system creates the notes.

Create schedule table

Create /do not create a schedule table. If this option is selected, the system will create a table in the drawing from the relevant csv file.

  1. Press the appropriate approval option.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
