Electrode Preferences > Drafting > Assembly Drawing > Border Settings
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Electrode > Drafting > Assembly Drawing > Border Settings.
Define the border settings for electrode assembly drawings. The values in the boxes can be modified. Zero, negative values, and strings are invalid.

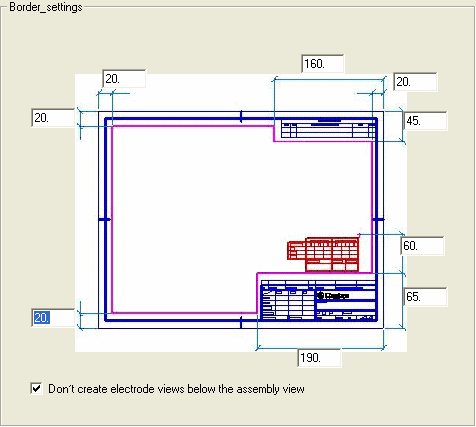

The Border Settings dialog is displayed.
Interaction
-
Define the border settings for electrode assembly drawings and set the parameter:
|
Don’t create electrode views below the assembly view |
Specify whether the area below the main assembly view in electrode assembly drawings should be empty or should have electrode views in it. Select the checkbox to define this area as empty. The default is unchecked. |
-
Press the appropriate approval option.
|
