Electrode Preferences > Drafting > Electrode Drawing > Label Configuration
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Electrode > Drafting > Electrode Drawing > Label Configuration.
Define the Label Configuration. ISO and ANSI configurations are available. Each label is displayed by marking the corresponding checkbox.
The Label Configuration dialog is displayed.
|

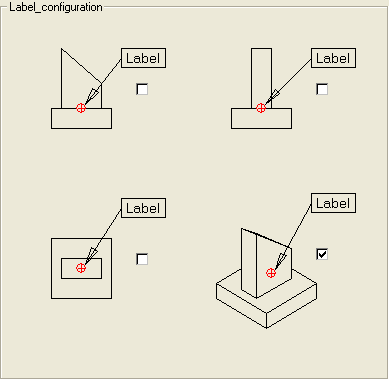

ISO |

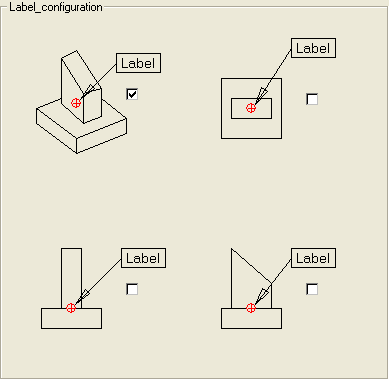

ANSI |
|
|
|
Interaction
-
Define the Label Configuration. ISO and ANSI configurations are available. Each label is displayed by marking the corresponding checkbox.
-
Press the appropriate approval option.
|
