Electrode Preferences > Drafting > General
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Electrode > Drafting > General.
Define the general electrode drafting settings.

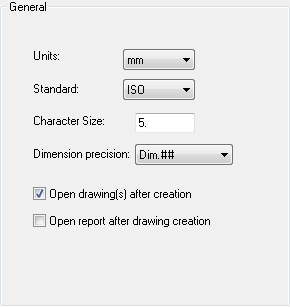

The General dialog is displayed.
Interaction
-
Define the general electrode drafting settings.
|
Units |
The drafting file units which determine the value units in the preferences. The dropdown menu contains mm and inch. |
|
Standard |
The standard used in the file. The dropdown menu includes :ISO and ANSI. These settings determine the dimension and label dialogs. |
|
Character size |
The character size of the file. The default values are according to the file units. |
|
Dimension precision |
Set the dimension precision in the file by selecting the appropriate precision from the dropdown list. |
|
Open drawing(s) after creation |
Set the default option for opening the drawing file(s) when the Export to Drafting operation has finished. This option can be changed in the Apply Drafting Templates dialog, when invoking the Export to Drafting operation. |
|
Open report after drawing creation |
Set the default option for opening the report file when the Export to Drafting operation has finished. This option can be changed in the Apply Drafting Templates dialog, when invoking the Export to Drafting operation. |
-
Press the appropriate approval option.
|
