Electrode Preferences > UCS > UCS
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Electrode > UCS > UCS.
Define the general electrode UCS activation and display settings.

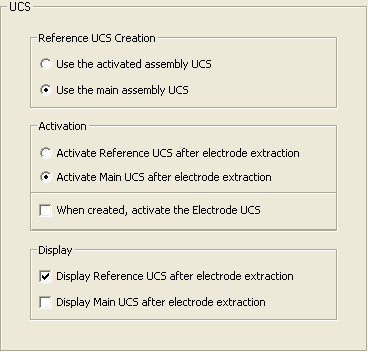

The UCS dialog is displayed.
Interaction
-
Define the general electrode UCS settings.
|
Use the activated assembly UCS |
Use the activated assembly UCS for electrode operations. |
|
Use the main assembly UCS |
Use the main assembly UCS for electrode operations. |
|
Activate Reference UCS after electrode extraction |
When the electrode is extracted, automatically activate the reference UCS. |
|
Activate Main UCS after electrode extraction |
When the electrode is extracted, automatically activate the main UCS. |
|
When created, activate the Electrode UCS |
When the electrode is created, automatically activate the Electrode UCS. |
|
Display Reference UCS after electrode extraction |
When the electrode is extracted, automatically display the reference UCS. |
|
Display Main UCS after electrode extraction |
When the electrode is extracted, automatically display the main UCS. |
-
Press the appropriate approval option.
|
