Electrode Preferences > Name Generator > Electrode Name
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to Electrode > Name Generator > Electrode Name.
Set the electrode naming parameter values that constituent the default name of each created electrode. The Electrode name is created automatically only if you use the Electrode Set-Up Wizard.

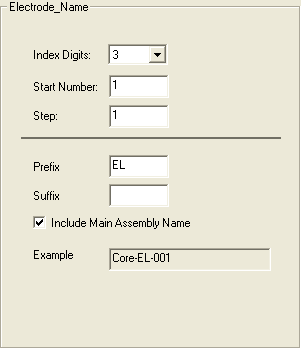

The Electrode Name dialog is displayed:
Interaction
-
Set the options that will define the name of the main assembly.
The Example field displays the structure and content of the electrode name based on your definitions.
Examples:
|

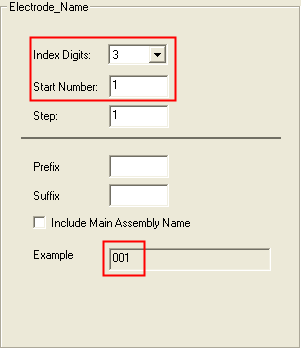

Define the Number of Index Digits to be added to the electrode name and also the start number of the first electrode. |

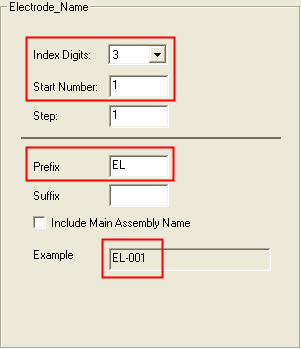

Define a Prefix to be added to the digits of the electrode name. |

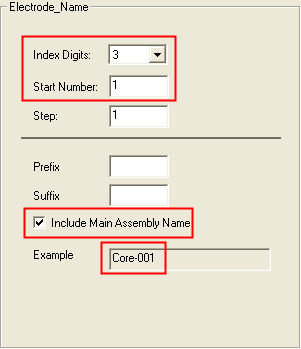

Select the Include Main Assembly Name to add this to the electrode name. |
|
|
|
|
-
Press the appropriate approval option.
|
