Electrode Preferences > Name Generator > Main Assembly

Access: Invoke this function from one of the following locations:

Select the Preferences button from the Quick Access Toolbar, or
Select Tools > Main Tools > Preferences from the menu bar.

Navigate to Electrode > Name Generator > Main Assembly.

Define the name of the Main Assembly. This is the assembly into which the component is added and the electrode is created. The Main Assembly name is created automatically only if you use the Electrode Setup Wizard.

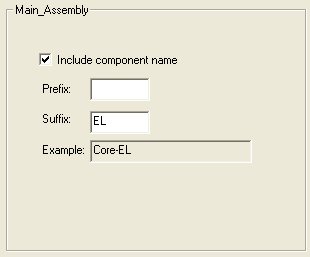

The Main Assembly dialog is displayed:

Interaction

Set the options that will define the name of the main assembly.

The Example field displays the structure and content of the main assembly name based on your definitions.

Examples:

Define a Suffix to be added to the main assembly name.	Select the Include Component Name to add this to the main assembly name.

Press the appropriate approval option.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
