Electrode Preferences > UCS > UCS Point Selection

Access: Invoke this function from one of the following locations:

Navigate to Electrode > UCS > UCS Point Selection.

Define the default selection point for the Electrode UCS and NC UCS functions.

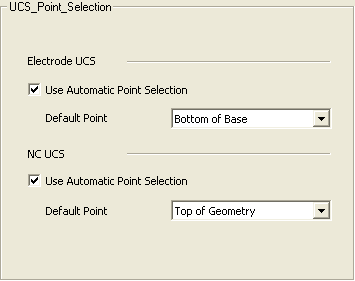

The UCS Point Selection dialog is displayed.

Interaction

  1. Define the default point selection settings. The parameter descriptions below apply to both the Electrode UCS and NC UCS functions. This allows you to set one origin point for the burn location, and a different origin for machining purposes.

Use Automatic Point Selection

Select the checkbox to set the default point selection option in the above functions to Automatic Selection.

Default Point

Select the default point that will automatically be selected in the Automatic Selection mode. The following dropdown list of options are available:

Top of Blank

Top of Geometry

Top of Base

Bottom of Base

Holder Active UCS Origin

This option selects the UCS origin point of the holder's active UCS.

Electrode UCS: The default option is Bottom of Base.

NC UCS: The default option is Top of Geometry.

  1. Press the appropriate approval option.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
