NC Preferences > Import Measurement

Access: Invoke this function from one of the following locations:

Select the Preferences button from the Quick Access Toolbar, or
Select Tools > Main Tools > Preferences from the menu bar.

Navigate to NC > Import Measurement.

Define the default folder holding the measurement results file to be used with the On Machine Inspection procedure. This file contains measurement data imported from the CNC controller back into Cimatron and associated with the On Machine Inspection procedure.

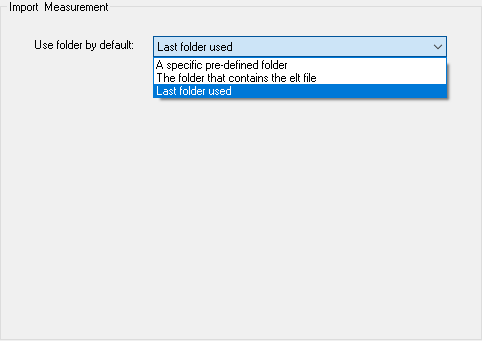

The Import Measurement dialog is displayed.

Interaction

Set the default folder from the dropdown list. The following folder options are available:

A specific predefined folder.
The folder that contains the ELT file.
Last folder used. The default file name is: <elt_file_name>-<procedure name>.

Press the appropriate approval option.
